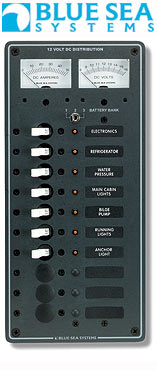

10 CIRCUIT "DC" PANEL

BLUE SEA Circuit breaker panels are designed and manufactured to ABYC standards and assure quality construction at an affordable price. The panel face is 1/8" aluminum which is immersion undercoated for corrosion resistance then finished with a slate color twopart polyurethane. Panels are supplied with magnetic circuit breakers and each circuit is equipped with an "ON" indicator LED. (amber for DC circuits and green for AC circuits). Bus bars are tin-plated for corrosion resistance and rated to 100 amps. Panels have heavy #10 stud terminals for wire connections.
Each panel comes with a kit of flush-fitting, self adhesive "Lexan labels" that are backlightable with optional "BACKLIGHT SYSTEM".

Comes with an 8-16 DC voltmeter with 3-position switch to monitor up to 3 battery banks and a 0 to 50 amp DC ammeter with remote shunt. Includes 10, 15 amp breakers and 3 blanks. Ready for installation of optional model 8065 backlight system (only one model 8065 required). 30 labels included. 5 1/4"W x 11 1/4"H. Model 8082, 12 VDC.
