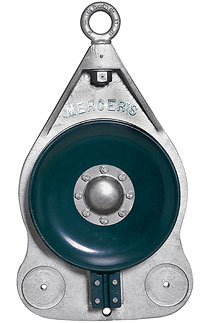

17" HANGING HEAD ASSEMBLY

44-448.....Maximum Line Pull 2500 lbs.
Maximum line speed 480 fpm. The ultimate when nothing less will do.  Handles the deepest and heaviest hauls with ease. Complete with cast aluminum mounting plate with swivel eye. 60 cu. in. Char-Lynn 112-1069 displacement motor, cast bronze hub, painted steel discs, and cast iron splitter. Hydraulic motor fittings included.  Shipping weight - 230 lbs.

44-924.....Maximum Line Pull 2150 lbs.
Maximum Line Speed 965 fpm. Designed especially for offshore crab pot hauling. As above except with 30 cu. in. Char-Lynn 112-1068 displacement motor. Shipping weight - 220 lbs.

**Click link below for Typical Hydraulic Installation guide.
