PARKER HYDRAULIC GEAR PUMPS

An exceptionally compact and lightweight pump for their capacity. Terrific for many low flow applications
such as hydraulically driven washdown and water pumps and portable hydraulic power units. Simple, efficient pressure loaded design - few moving parts. Highly tolerant to fluid contamination and extremely reliable under cold weather operation.

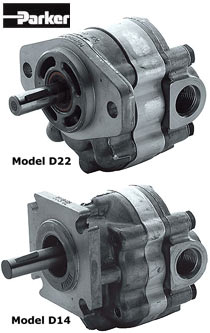

Model D14
5.0 gpm @ 3600 rpm, max. psi 2500.
5/8" ORB inlet - 1/2" ORB outlet.
Shaft size 1/2". 4-bolt mounting. Clockwise rotation.

Model D22
7.9 gpm @ 3600 rpm, max. psi 2500.
5/8" ORB inlet - 1/2" ORB outlet.
Shaft size 1/2". SAE-A 2-bolt mounting. Clockwise rotation.
