VICTRON INVERTER/CHARGERS

Phoenix Mulitplus
MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge
technology and a high-speed AC transfer switch in a single compact enclosure.

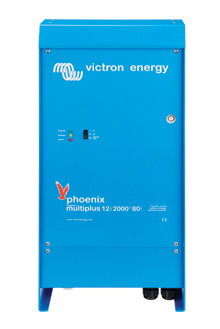

Multiplus 12/2000/80
Input 9.5–17 VDC; output 120 VAC, 60 Hz. Continuous output power 1,600 W, peak power 4,100 W. Battery charge
current 80 Amp, starter battery charge current 4 Amp. Battery connection M8 studs.
Dimensions: 20.5”H x 10”W x 4.9”D

Multiplus 12/3000/120
Input 9.5–17 VDC; output 120 VAC, 60 Hz. Continuous output power 2,000 W; peak power 4500 W. Battery charge
current 120 Amp, starter battery charge current 4 Amp. Battery connection M8 studs, 120 VAC connection 6-ga.
screw clamp.
Dimensions: 19”H x 10.2”W x 8.6”D

Multiplus 24/2000/50
Input 19–33 VDC; output 120 VAC, 60 Hz. Continuous output power 1,600 W, peak power 4,100 W. Battery charge
current 50 Amp, starter battery charge current 4 Amp. Battery connection M8 studs.
Dimensions: 20.5”H x 10”W x 4.9”D

Multiplus 24/3000/70
Input 19–33 VDC; output 120 VAC, 60 Hz. Continuous output power 2500 W, peak power 6000 W. Battery charge
current 70 Amp, starter battery charge current 4 Amp. Battery connection M8 studs, 120 VAC connection 6 ga. screw
clamp
Dimensions: 19”H x 10.2”W x 8.6”D
